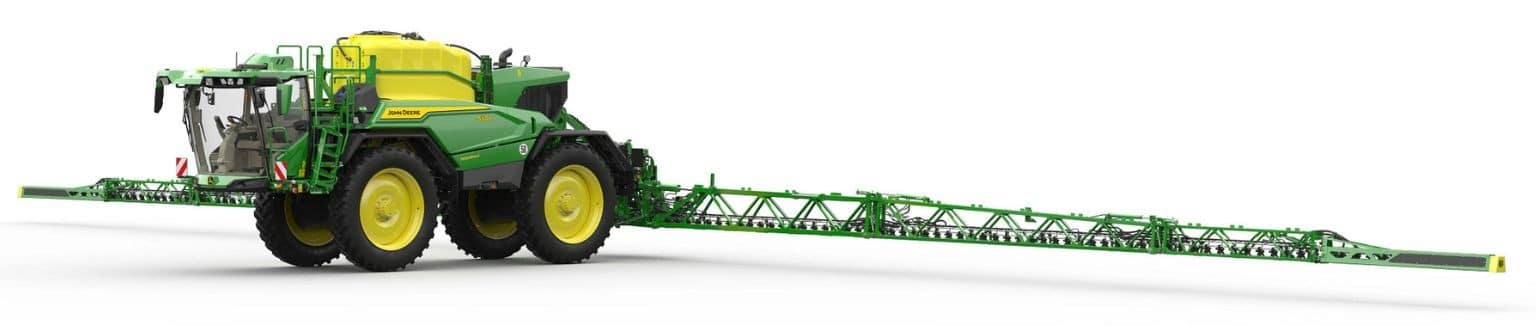

John Deere updates its European 500R self-propelled sprayer line-up for model year 2027 (MY27). The new 6,000-liter spray tank flagship model, features alongside upgrades to boom technology, spraying performance and operator comfort.
Designed for large scale farming, the MY27 500R series builds on the existing front-cab, rear-engine concept and enters a higher productivity segment while maintaining a compact transport width of just 2.55 m. Headline addition is the new 560R model, expanding the 500R range into the 6,000-liter class. The larger tank is aimed at operators working tight application windows who need to cover more hectares per day with fewer refilling stops, particularly in cereals, oilseed rape and other high-input crops. The 560R complements the existing 4,000- and 5,000-liter models, providing a broader choice within a single platform.

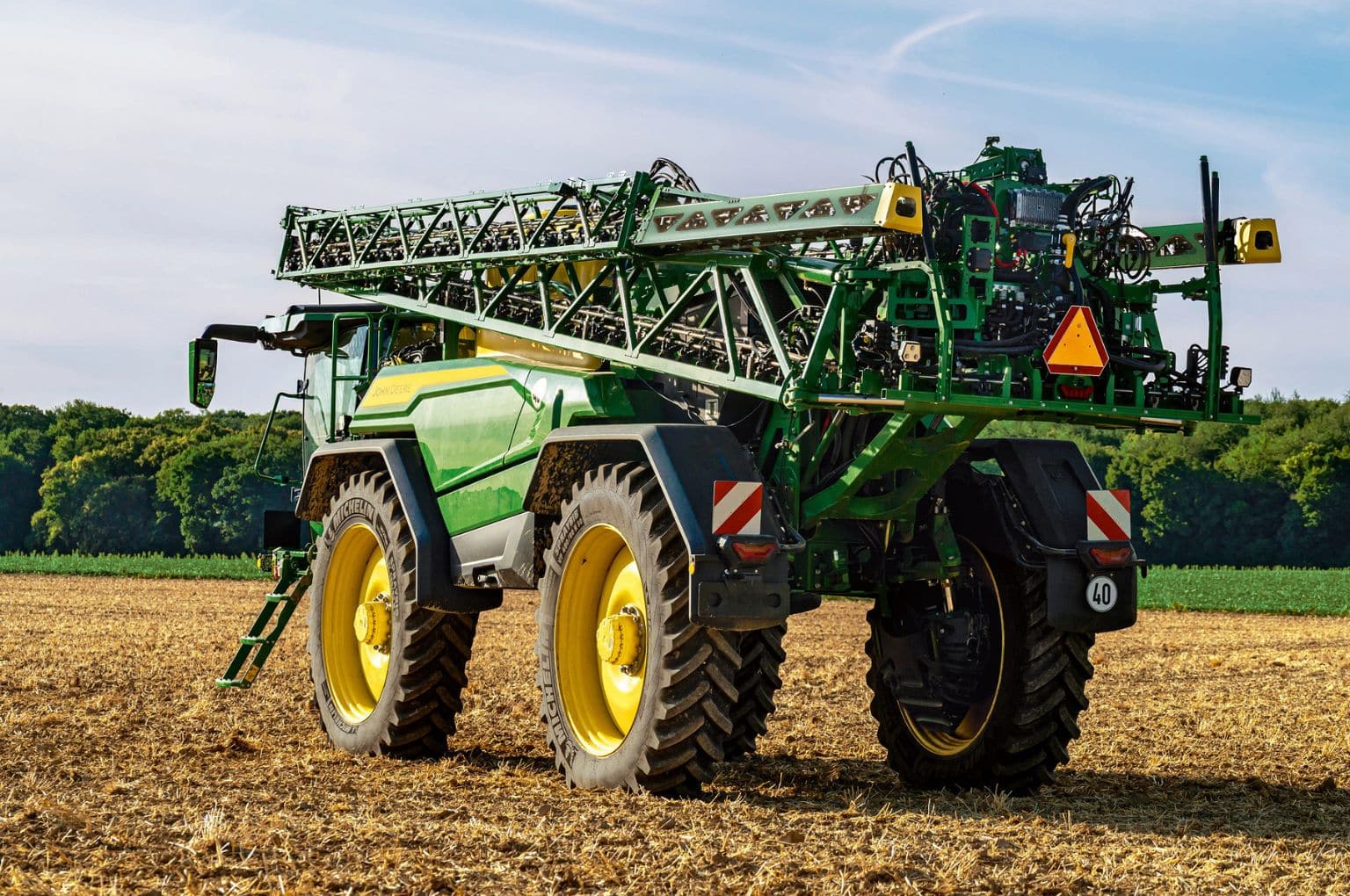

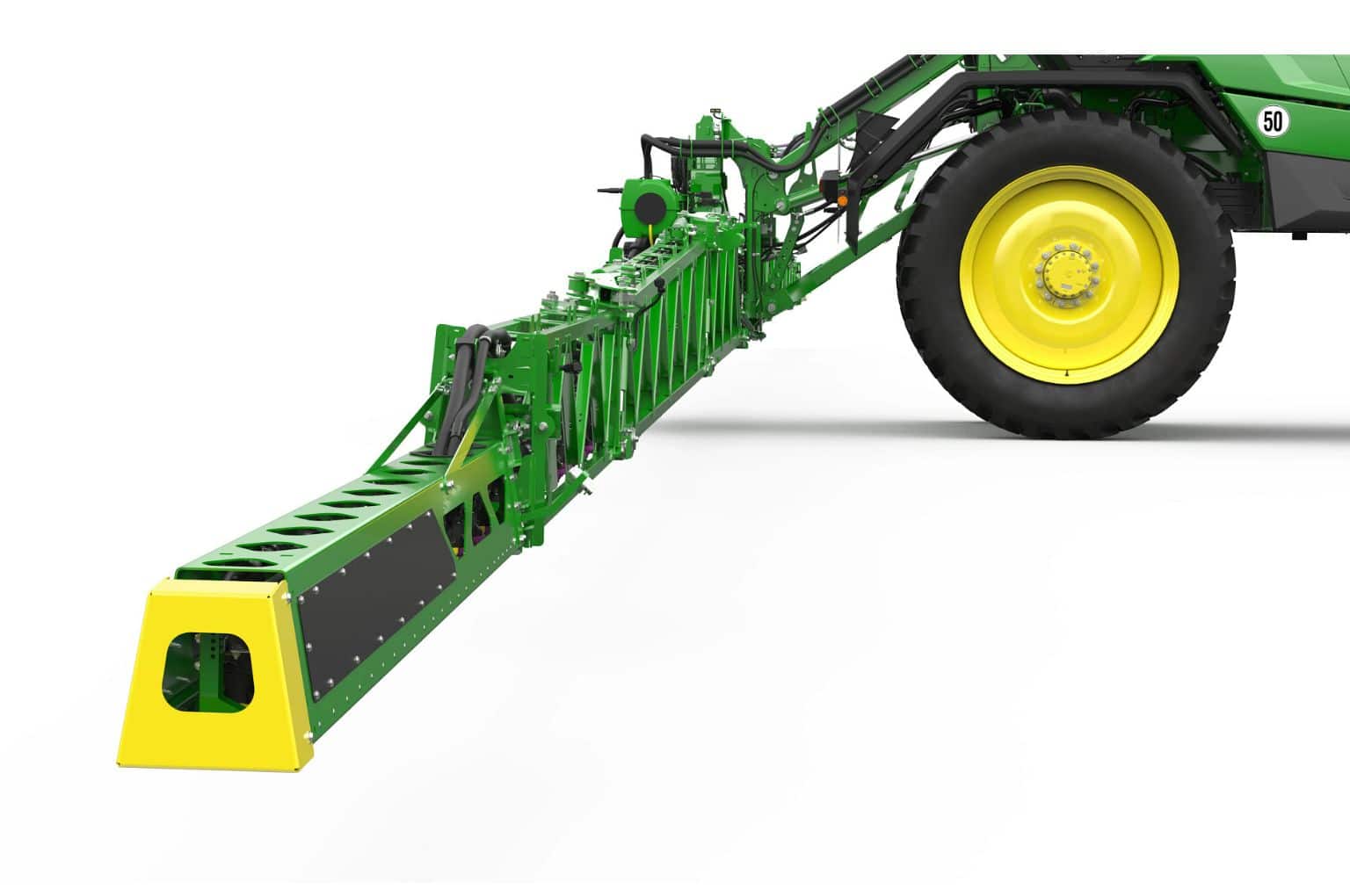

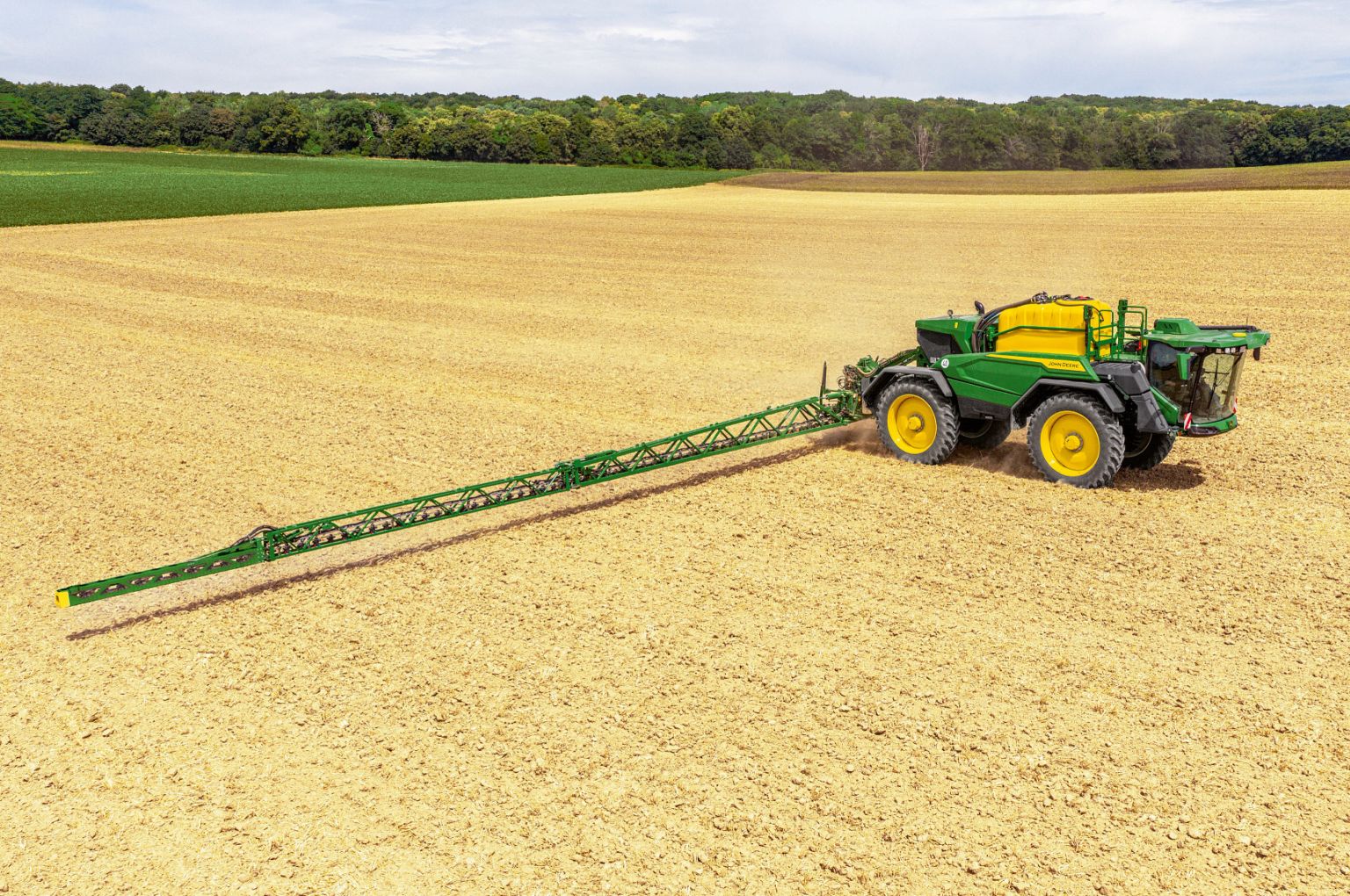

All-new for the 500R series is the spray boom portfolio with working widths of up to 42 m. The modular steel boom design is more compact and lighter, offering shorter opening and closing times. Boom widths of 30, 36 and 42 m are available, with a double- or triple folding design and both 25 cm and 50 cm nozzle spacings. All nozzles and stainless-steel spray lines are fully protected within the boom structure, helping to reduce damage and maintenance. The new booms maintain a 2.55 m transport width, supporting safe and efficient road travel between fields.
Improved boom stability
A key technical upgrade is the introduction of BoomTrac Pro 2, John Deere’s latest automatic boom height control system. With five (boom widths under 36 m) or seven (36 m and over) ultrasonic sensors, the system allows the boom to closely follow ground or crop contours, maintaining consistent spray height and overlap even at higher forward speeds. In addition, the new boom center frame incorporates active “boom yaw and roll” control, designed to counteract chassis movement and slope effects. This helps to keep the boom stable across the full working width, thus improving application accuracy and reducing operator workload.
Maximum spraying speed of the 500R series increases from 25 km/h to 30 km/h, without compromising droplet quality. This is enabled by the combination of stable boom control and John Deere’s established application systems, including Individual Nozzle Control (INC) Pro and ExactApply. These systems also allow multi-rate spraying (up to 15 different rates across the boom width), turn compensation and consistent droplet size across a wide speed range, enabling apply crop protection products accurately while maximizing daily output.
Fast filling and easy rinsing
All MY27 machines benefit from the iPowrSpray dual-circuit solution system. A high-capacity clean-water filling pump delivers up to 1,200 liters per minute, reducing filling time and improving efficiency during busy spray periods. Rinsing is easily done with an intuitive interface accessible both inside and outside the cab. Automated rinse programs, combined with AirRinse and AutoDilute functions, help minimize residue, reduce contamination risk and prepare the sprayer quickly for the next application.

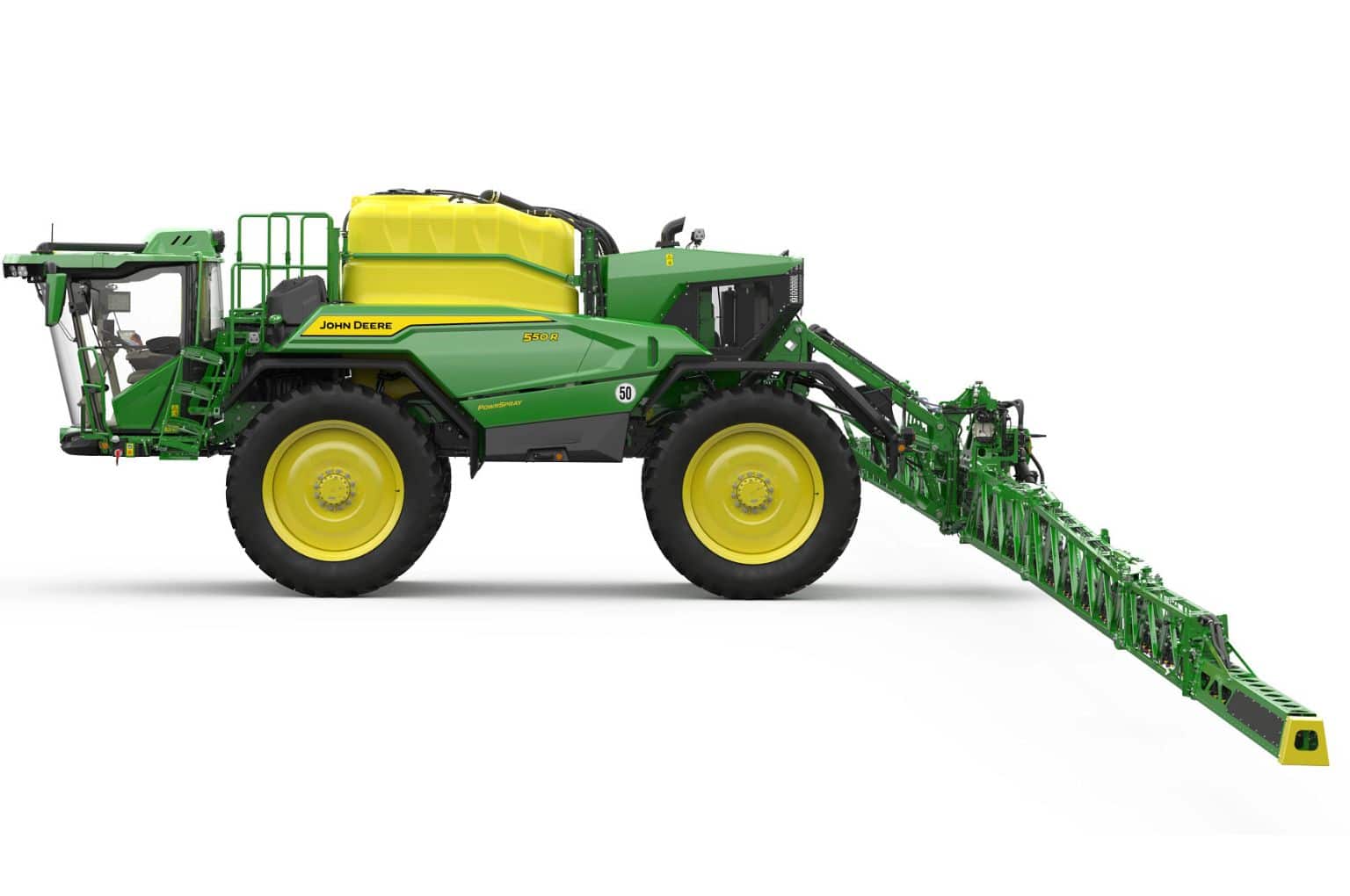

The MY27 500R series retains the front-mounted cab, familiar from John Deere combines and forage harvesters, and rear-engine layout, delivering a balanced 50:50 weight distribution and a clear view of the boom. Combined with in-wheel suspension and the CommandDrive drivetrain with automated rpm management, the result is high ride comfort both in the field and on the road. Despite its increased capacity and wider booms, the 500R remains easy to manoeuvre on narrow roads and through villages, important for European farming conditions.
Ease of use, setup and documentation
The 500R series places strong emphasis on ease of use through AutoSetup, which allows operators to prepare spraying jobs before entering the field. With integrated agronomic advice and full field guidance, machine settings, application parameters and guidance lines can be transferred directly to the sprayer, helping to reduce setup time and avoid operator errors. In addition, automated documentation supports customers in meeting regulatory requirements. Application records are generated automatically, can be exported as Excel files, and are ready to be submitted to governmental authorities, making it possible to fulfil Cross Compliance obligations with minimal administrative effort.
John Deere expects 10 to 15% productivity gain compared to the previous model. Production of the new 500R series is scheduled to begin in late 2026, with first customer deliveries expected from early 2027, depending on model and specification.
