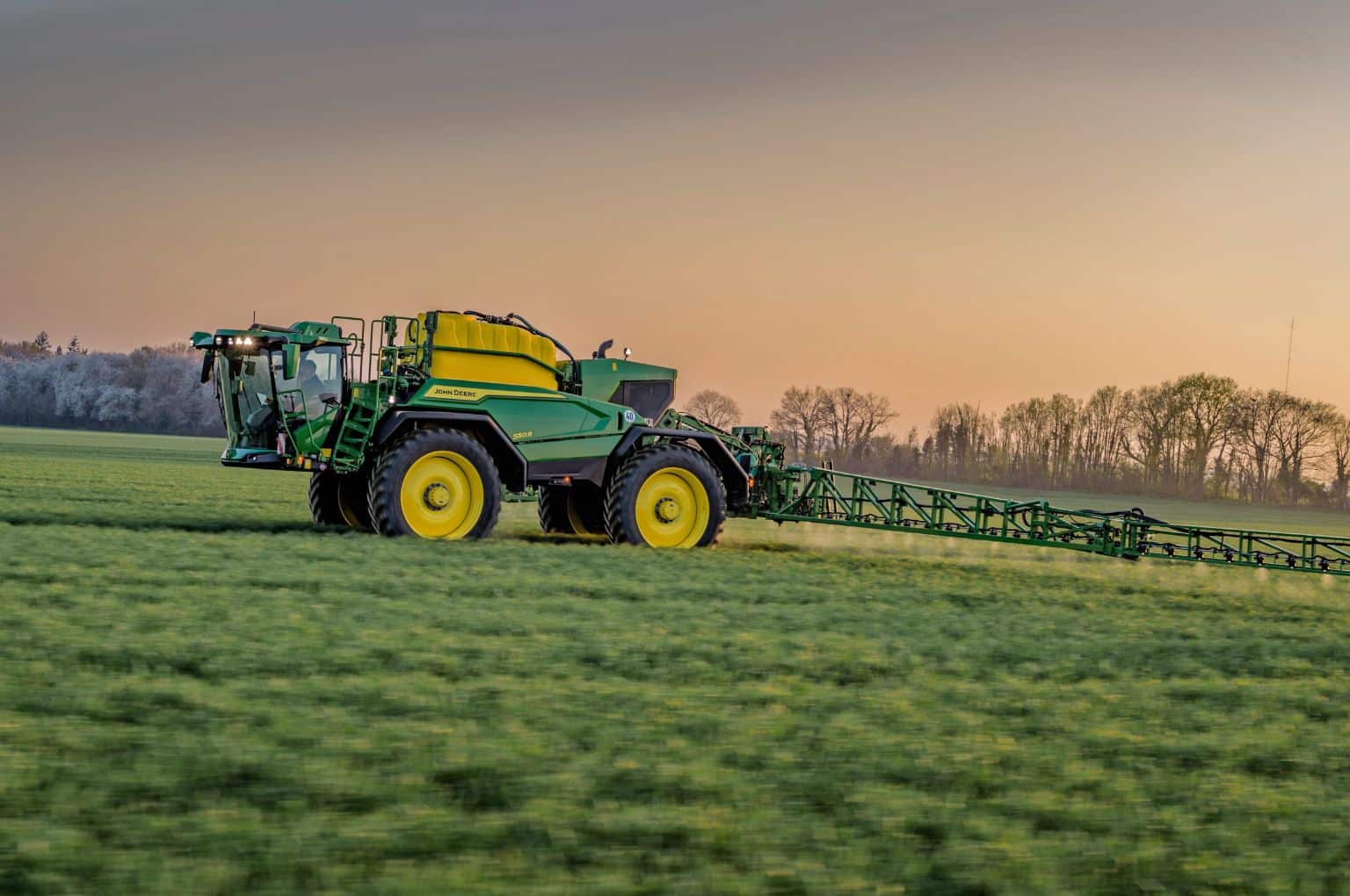

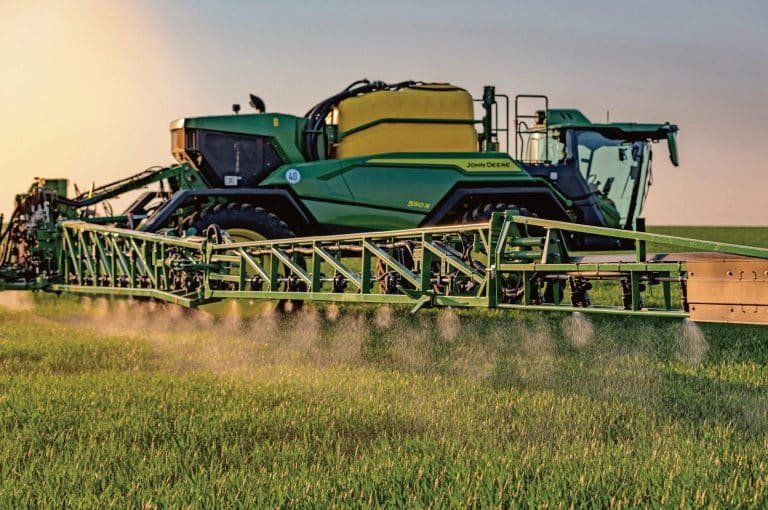

John Deere introduces the new 500R flagship sprayer. Thanks to precise application control and boom positioning on this machine, every drop hits the crop where it counts. The modern cab ensures driver comfort with various features and enhanced machine control.

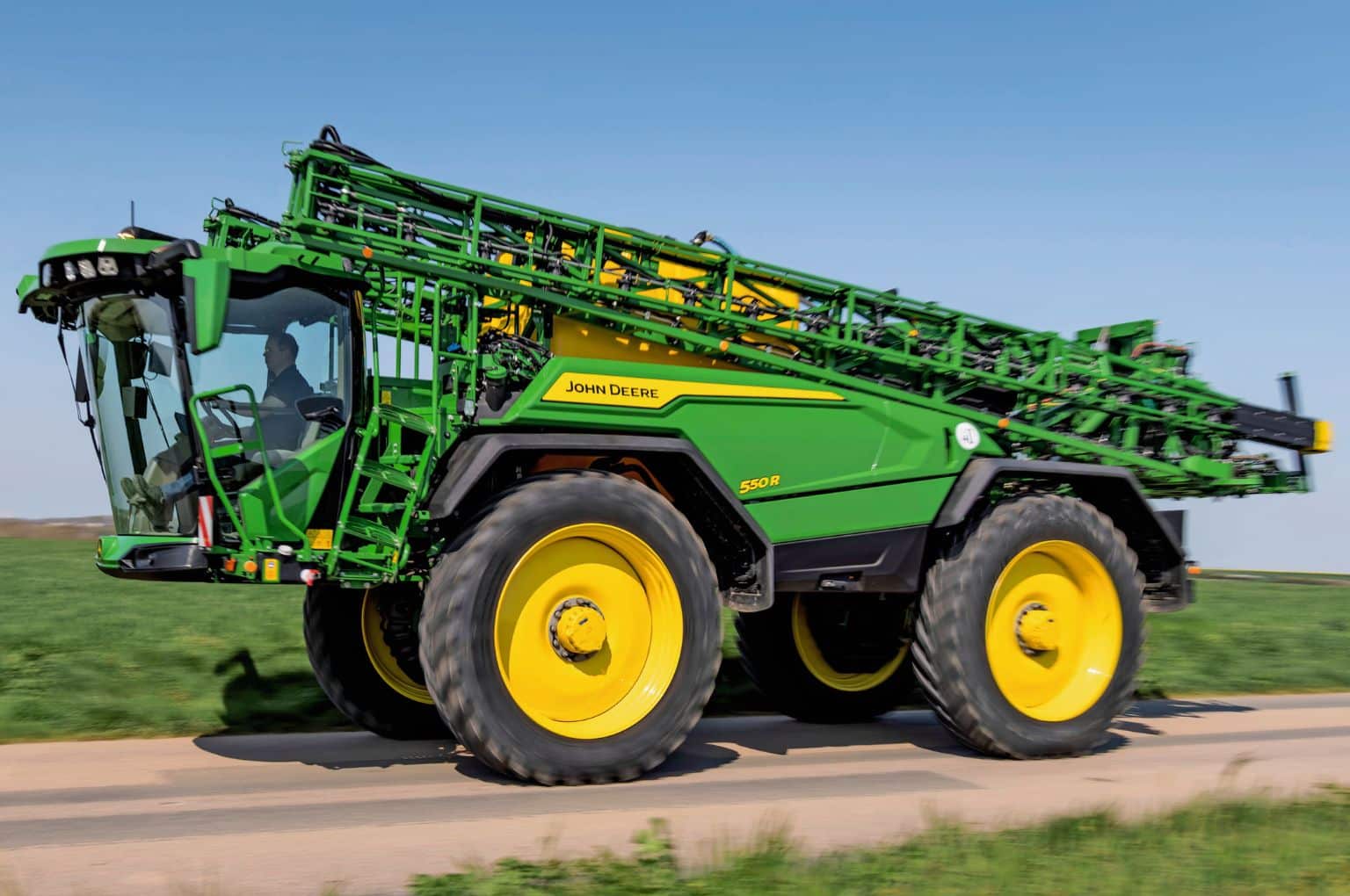

Visibility from the cab to the boom on the 500R has been maximized, giving operators a clear view of their working environment for safer and more efficient spraying. The machine’s weight is evenly distributed, enhancing traction both in the field and on the road. Its narrow profile makes road transport easier and safer, while still accommodating for a large platform between fluid tank and cabin.

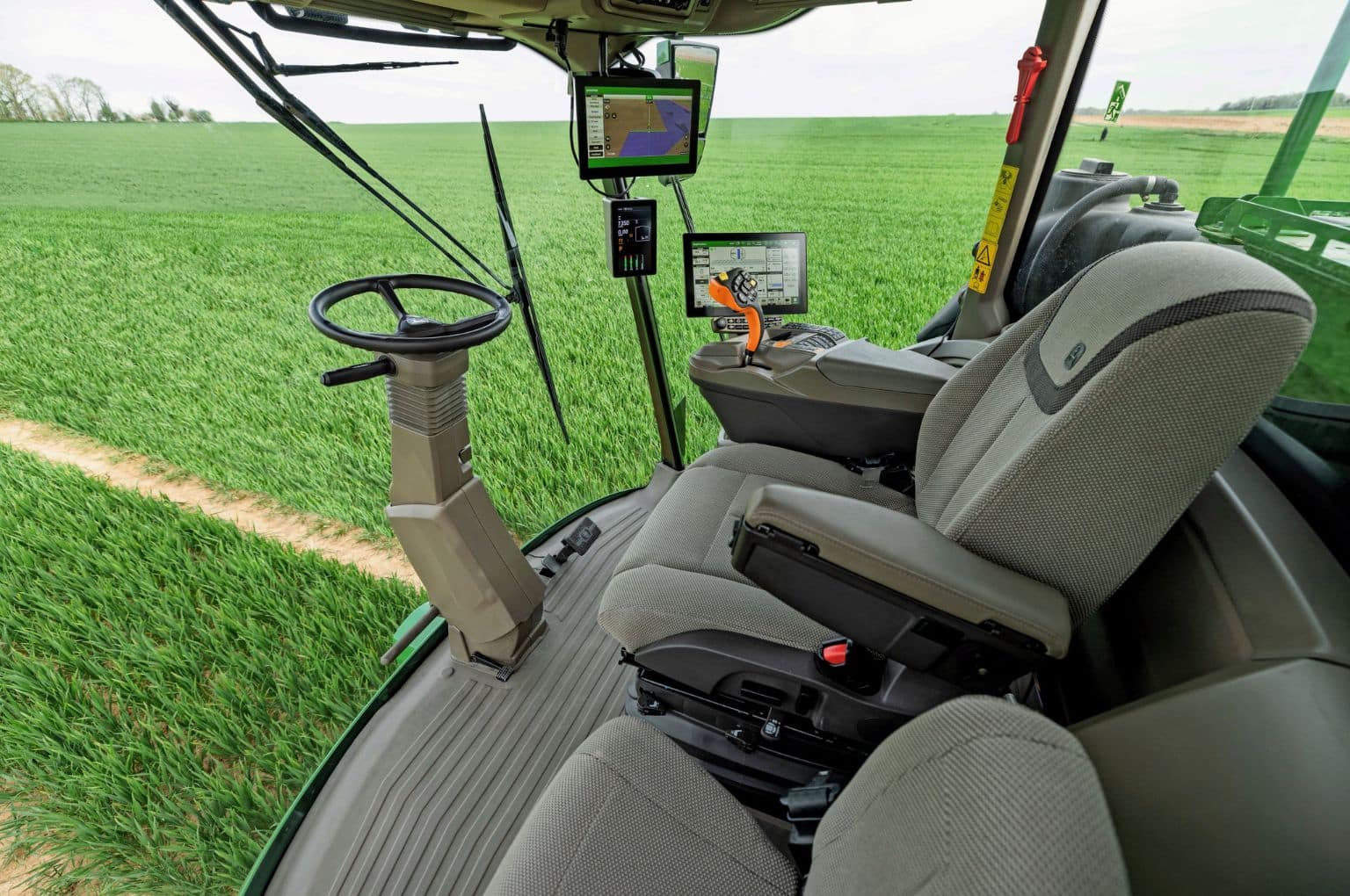

The fully pressurized cab with Cat. 4 filtration protects operators from exposure to chemicals during spraying operations. Ample storage options include armrest compartments and behind-seat storage for smartphones, keys, and larger items, with dedicated holders for beverage cups. Features such as Bluetooth connectivity, clear sound quality, and seamless smartphone integration with Apple CarPlay and Android Auto enable operators to easily make calls, handle messages, access music, and use voice commands.
The G5Plus CommandCenter boasts a 35% larger screen and 75% faster performance compared to previous displays. It offers high-definition 1080P resolution and a familiar maps-like satellite view. A corner post display provides essential machine information at a glance. The new CommandArm groups buttons by functionality, including engine, transport and chassis, and lights, for intuitive operation. The ergonomic multifunction joystick allows operators to control speed and park brake with a simple push or pull, while executing essential spraying functions through intuitively placed buttons.
Boom stability and advanced drivetrain

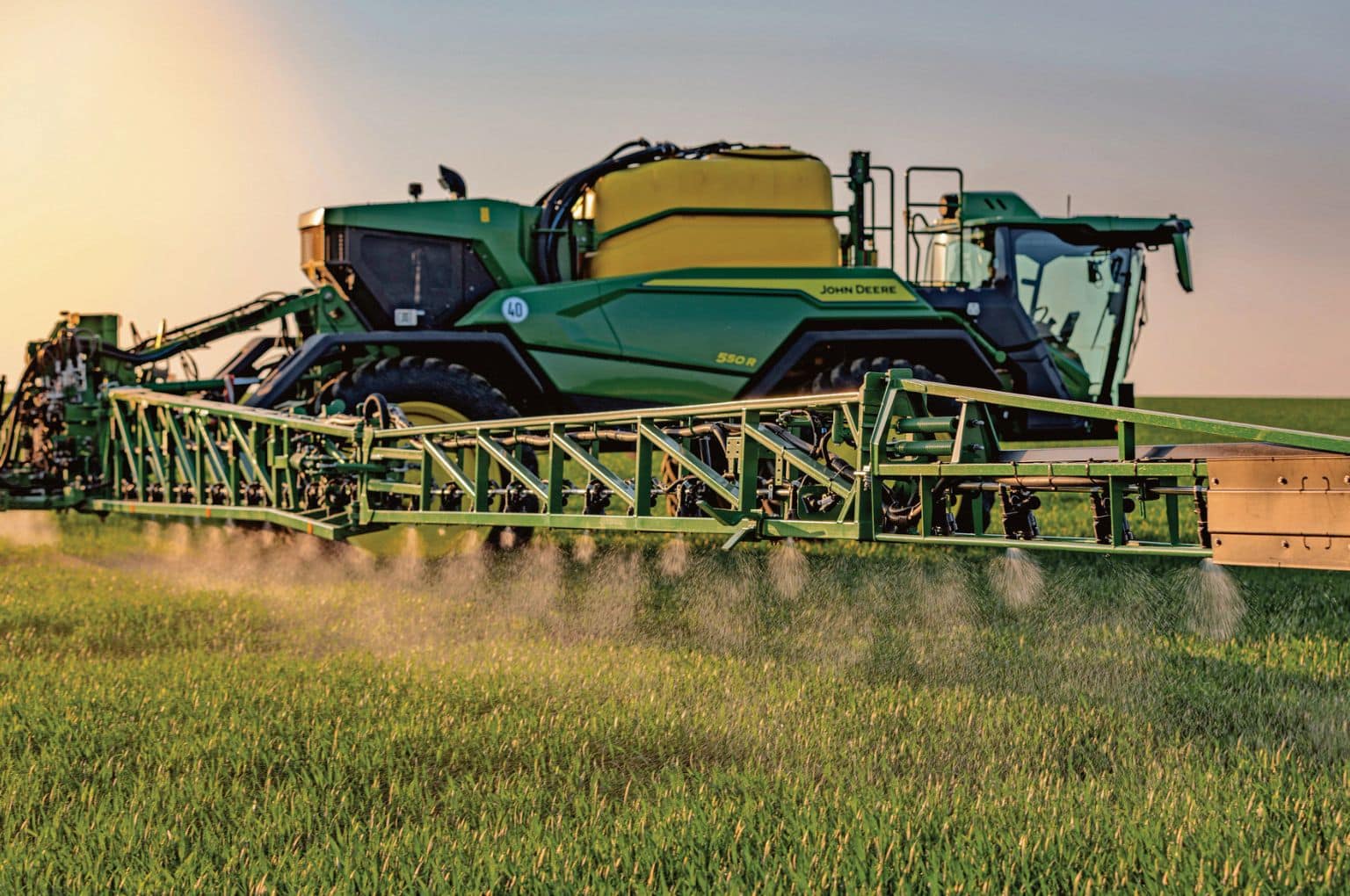

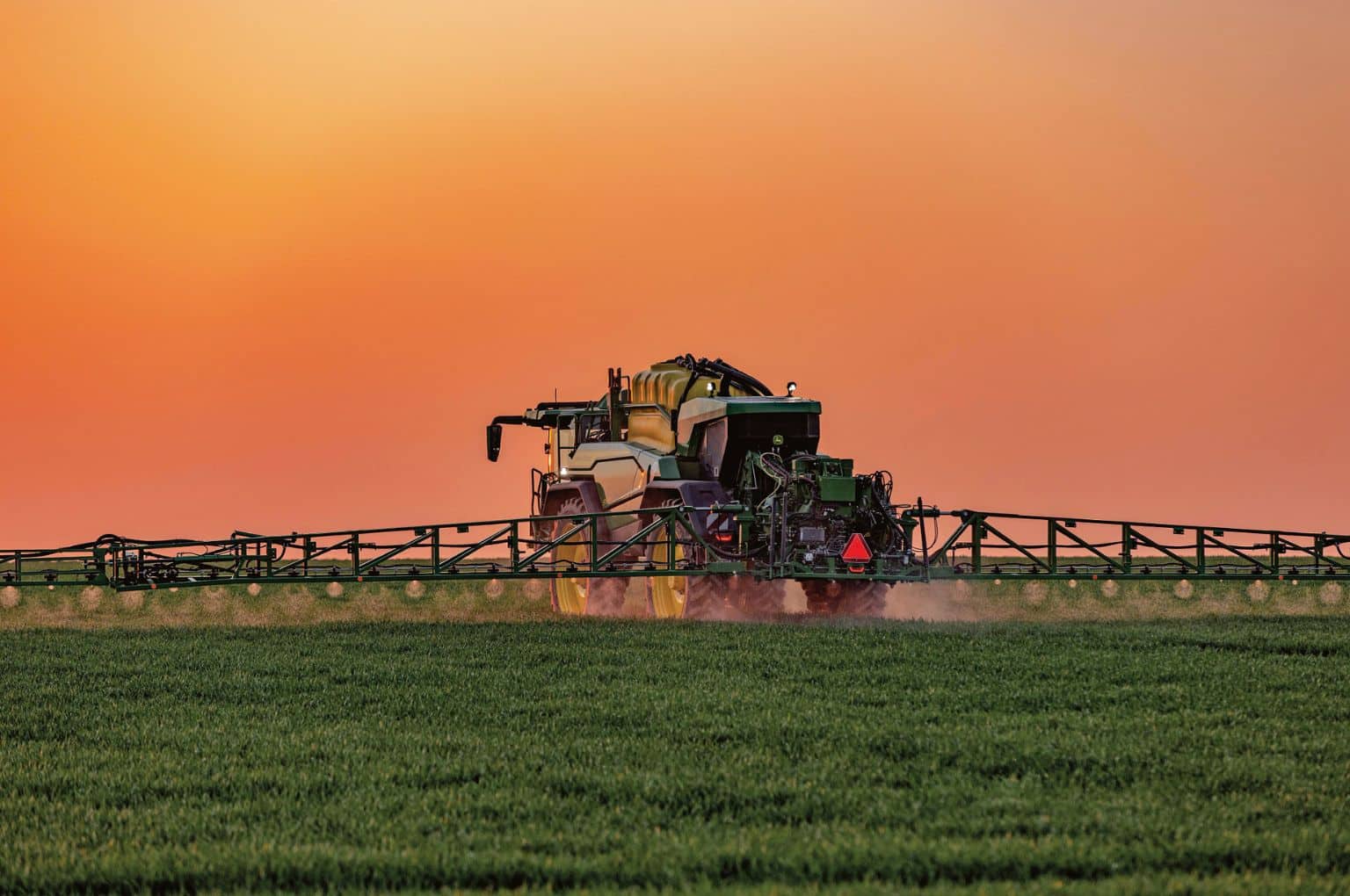

BoomTrac Pro 2 is equipped with five boom height sensors and an Inertia Measurement Unit (IMU) sensor, ensuring the spray boom is correctly positioned at all times. This maintains consistent application heights, reduces drift, allows for higher speeds, and minimizes operator stress. The actively controlled center frame delivers maximum stiffness and optimal boom performance. It combines high stability with an intelligent dampening system that smooths out operation.
At the heart of the 500R is the CommandDrive variable speed hydrostatic transmission, which offers an infinite range of speeds for optimal performance. A single hydrostatic ump powers four variable wheel motors, each connected to a heavy-duty planetary final drive hub. This configuration ensures full pulling power at each wheel and delivers maximum traction control. The independent wheel motors automatically adjust power based on weight distribution and wheel speed, maintaining stability and grip in all conditions. For road travel, the 500R’s Auto Mode reduces engine speed to 1,350 RPM, significantly lowering fuel consumption and noise levels for a more economical and comfortable ride.
Precision technology

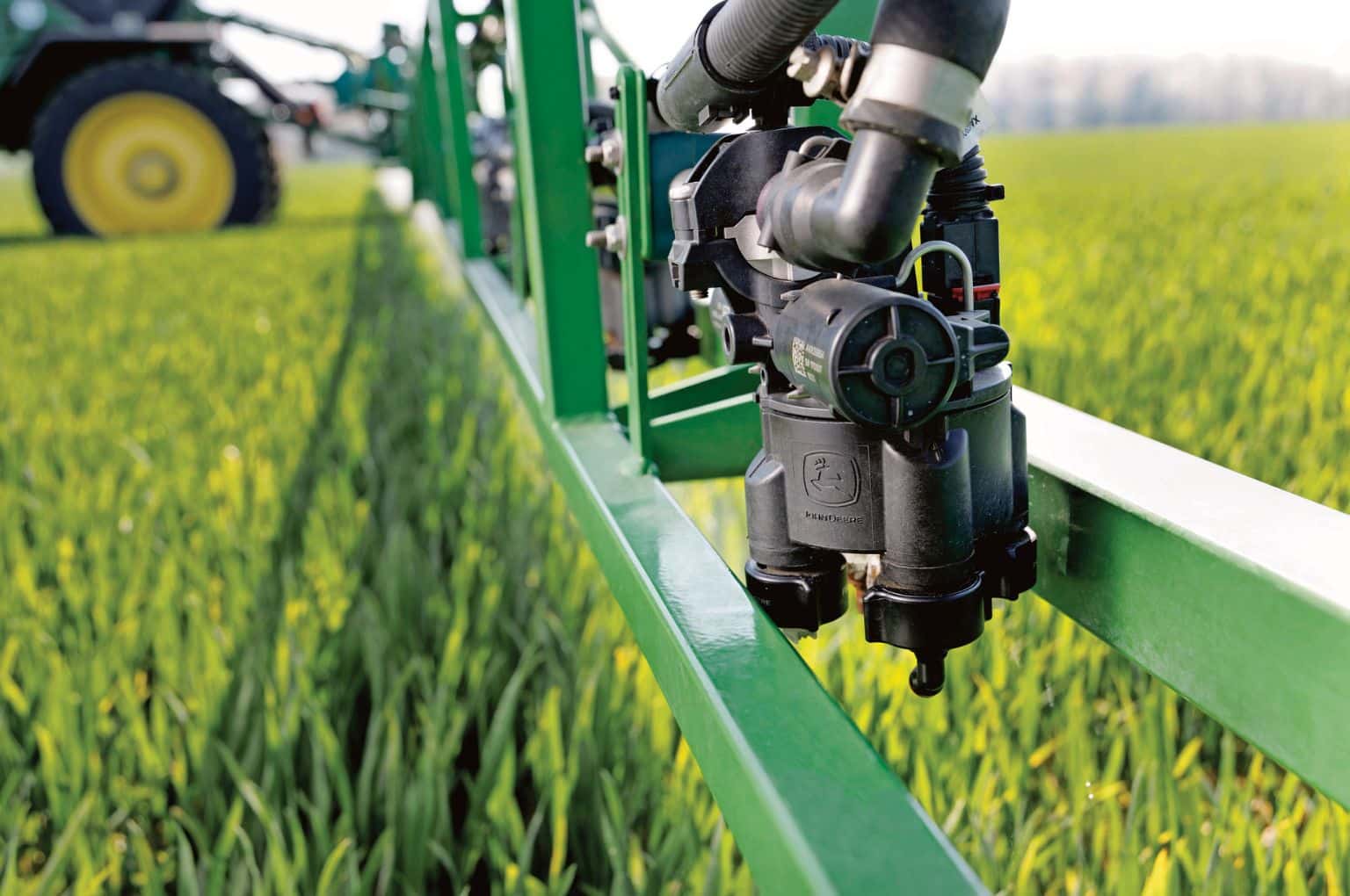

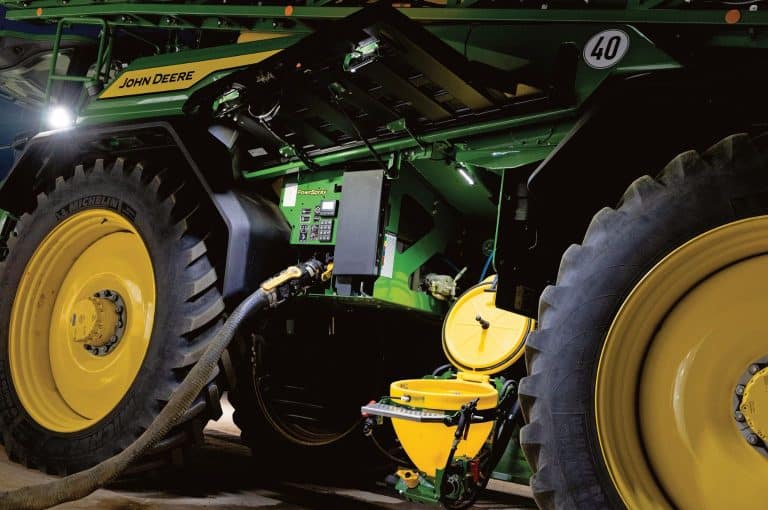

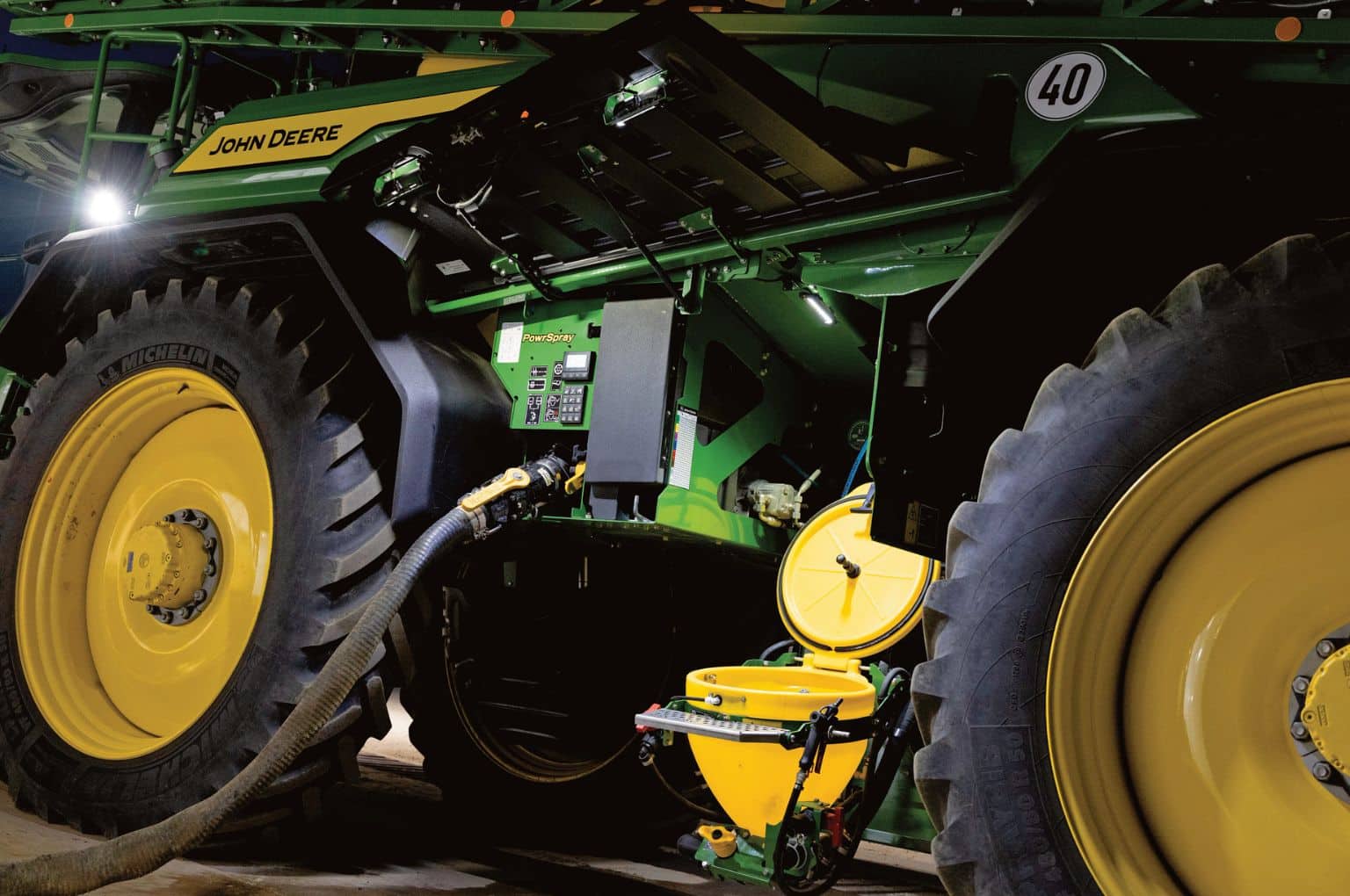

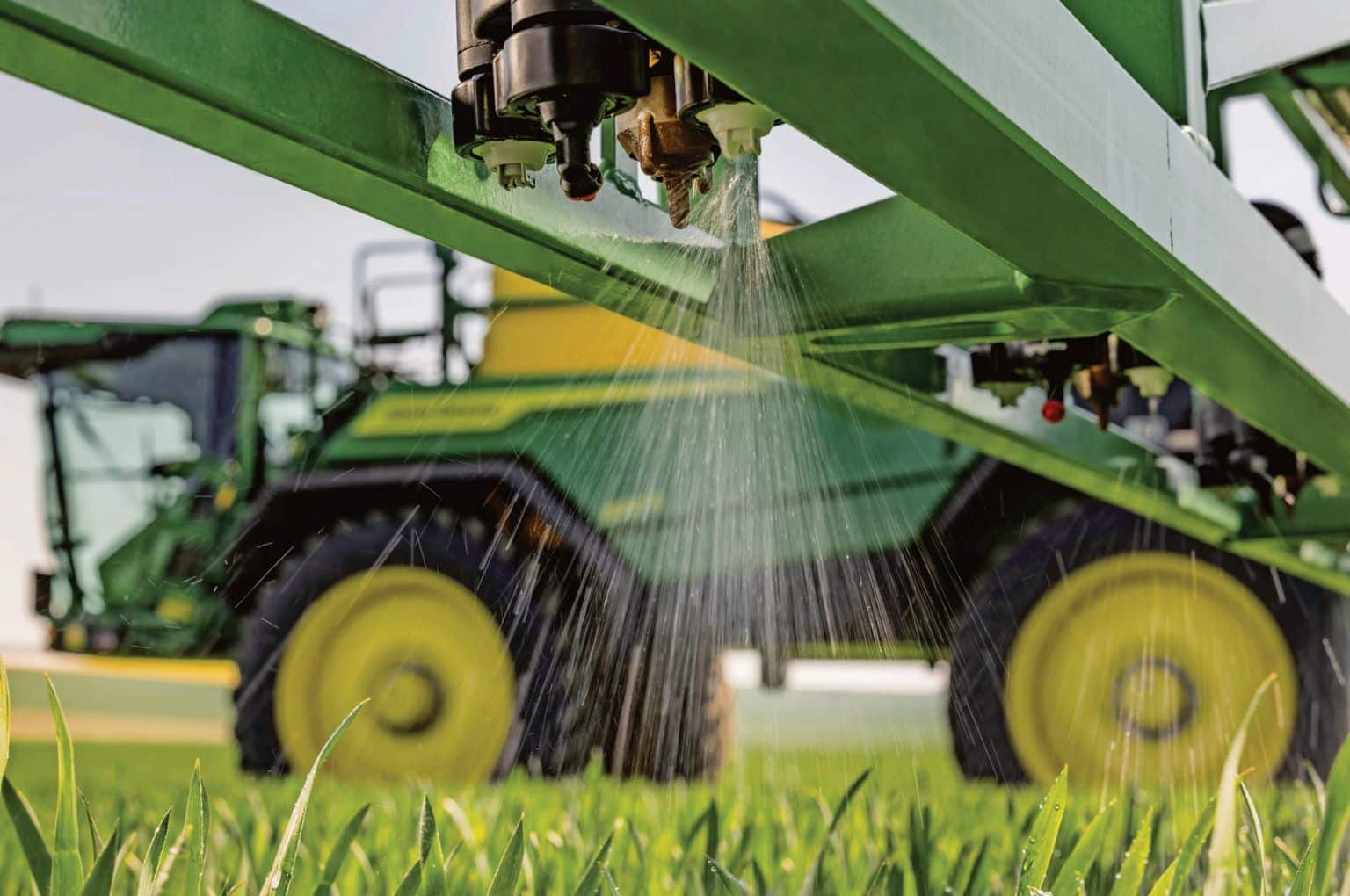

The combination of PowrSpray, ExactApply, and BoomTrac Pro 2 delivers up to 98% accuracy in spraying applications. PowrSpray is a dual circuit pump system developed exclusively by John Deere. Its key component, the Direct Rate Controller on the spray pump, can change output from minimum to maximum in less than three seconds, maintaining a consistent application rate even when forward speed changes. ExactApply offers highly precise spray control through individual nozzle management and pulse width modulation which maintains a constant droplet size across a large ground speed range, thus maximizing application quality. The automatic turn compensation ensures a constant application rate in case the machine follows a curved track, and the new multi-meter feature allows up to 11 different rates across the boom bringing application to an even higher precision.
