Steyr Plus tractors were introduced last year with S-Control II, a 40kph 24F/24R transmission with two-speed powershift. The largest models are now also offered with an electro-hydraulic powershuttle 12F/12R transmission. It provides 12 speeds in both forward and reverse, with electronic shuttle activation for swift but smooth direction changes.
Tractors specified with the 12F/12R powershuttle have mechanical draft control. From late 2025 there will be an option for electric auto guidance, for ease of field operation and matching parallel passes. An optional telematics package will enable instant two-way data communication.
Features common to all Plus tractors, regardless of transmission type, include LED worklights, a larger 130-litre fuel tank, and 75mm more ground clearance, aided by a 420/85 R38 maximum rear tire option providing 480mm total clearance. A brake-to-clutch feature allows drive to be disengaged using only the brake pedals, particularly useful for front loader work, while gross vehicle weight is up 7.7% to 7.0t, enabling heavier loads to be handled, and a larger hydraulic pump provides 82 l/min of oil flow for demanding hydraulically-powered implements. Other implement connection upgrades include more rear lift capacity, up from 4,400kg to 4,700kg, and a new front PTO pack that features a wet clutch for reduced maintenance. The optional integral front hitch is compatible with a new Class 1.5 HD front axle, which now features enhanced steering response.
Models ordered with the established 24F/24R HiLo transmission benefit from electronic draft control for precision management of mounted implements, and Auto PTO to automatically engage/disengage the power take-off according to rear linkage arm height. Cab comfort is further enhanced by mechanical cab suspension, and the availability of hydraulic auto guidance. In addition, variable rate steering allows better adjustment to the steering angle of the front wheels.
New loader option

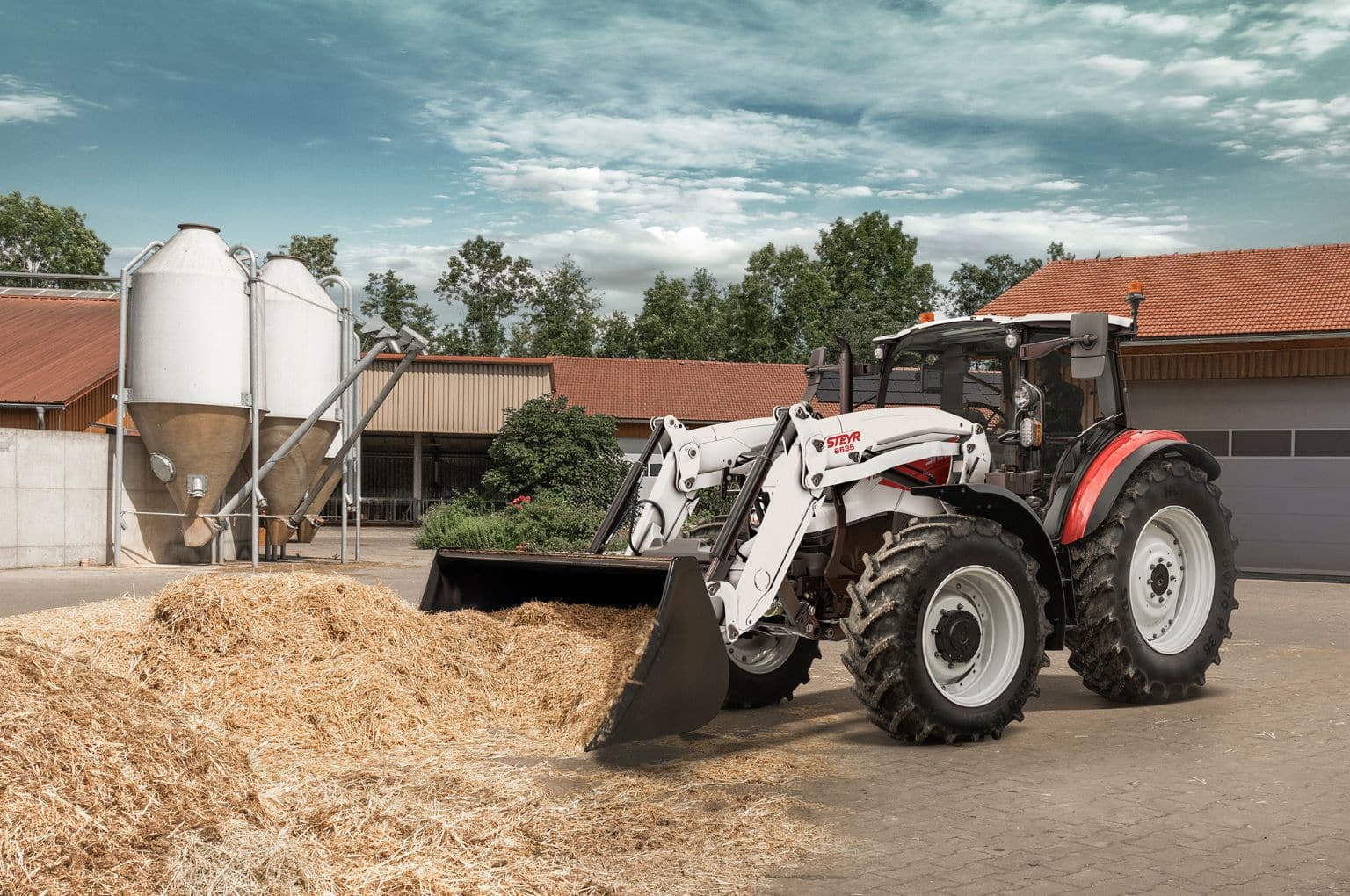

Introduced alongside the updated 4100-4120 Plus Powershuttle models, the new S635 front loader matches their dimensions, features and capabilities, with maximum lift height/weight of 3.8m/2,098kg. It can be factory-fitted, or tractors can be ordered loader-ready with subframe and hydraulic kit for loader fitment by the dealer.
The S635 design includes an attachment pivot point that has been moved further towards the tractor to create an optimal center of gravity for the tractor/loader combination, ensuring maximum stability during work. Loader boom profile is curved to maximize visibility, a design complemented by the positioning of the mechanical self-levelling mechanism beneath the boom and concealment of the hydraulic hoses within the arms, which also helps protect the hoses from damage risk.
S635 features include auto-lock tractor connection, quick-coupler multi-service hydraulic connector with secure storage, diverter valve for the third service, attachment level indicator, soft-ride suspension and Euro-type headstock. Among the options are loader frame-mounted fenders. Available attachments include a new high capacity tapered bucket, for fast, full load discharge. The wear-resistant bucket lip is reversible when the leading edge is eventually worn.
